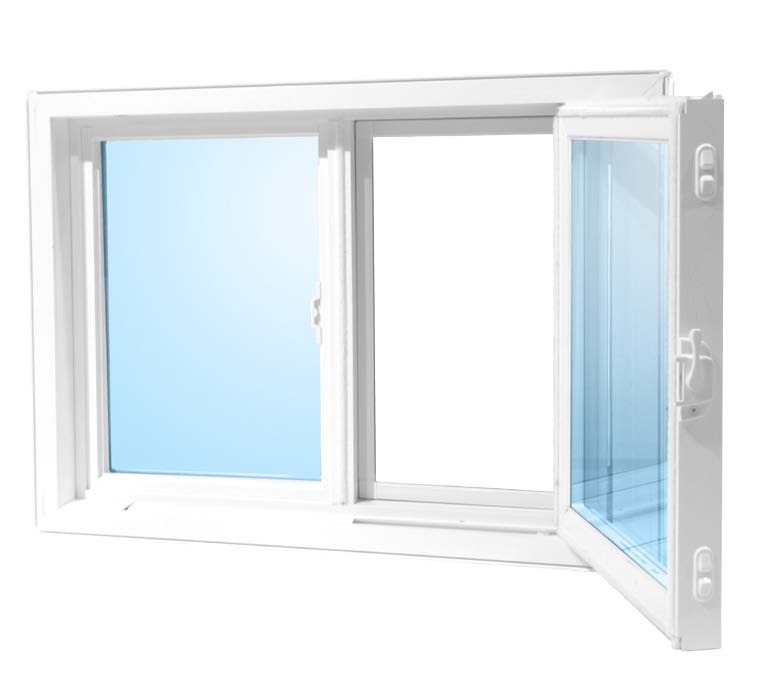

Single Slider Windows

The Single Slider Tilt windows are based on the swing-in shoe mechanism and this feature makes this window a popular choice. This mechanism features dual tabs that can easily swing in on the operating sash to facilitate exterior glass cleaning.

Single Sliders Tilts are preferred over Double Slider Tilt windows for style and simplicity as less surface is obstructed by screens.

Features

  • Standard Energy Efficient Low E Argon glass units
  • Standard Removal Screen
  • Modern contoured frame
  • Color matched cam locks
  • Triple Weather Seals
  • Low Profile Tilt Latches
  • Fusion Welded Sashes and Frames

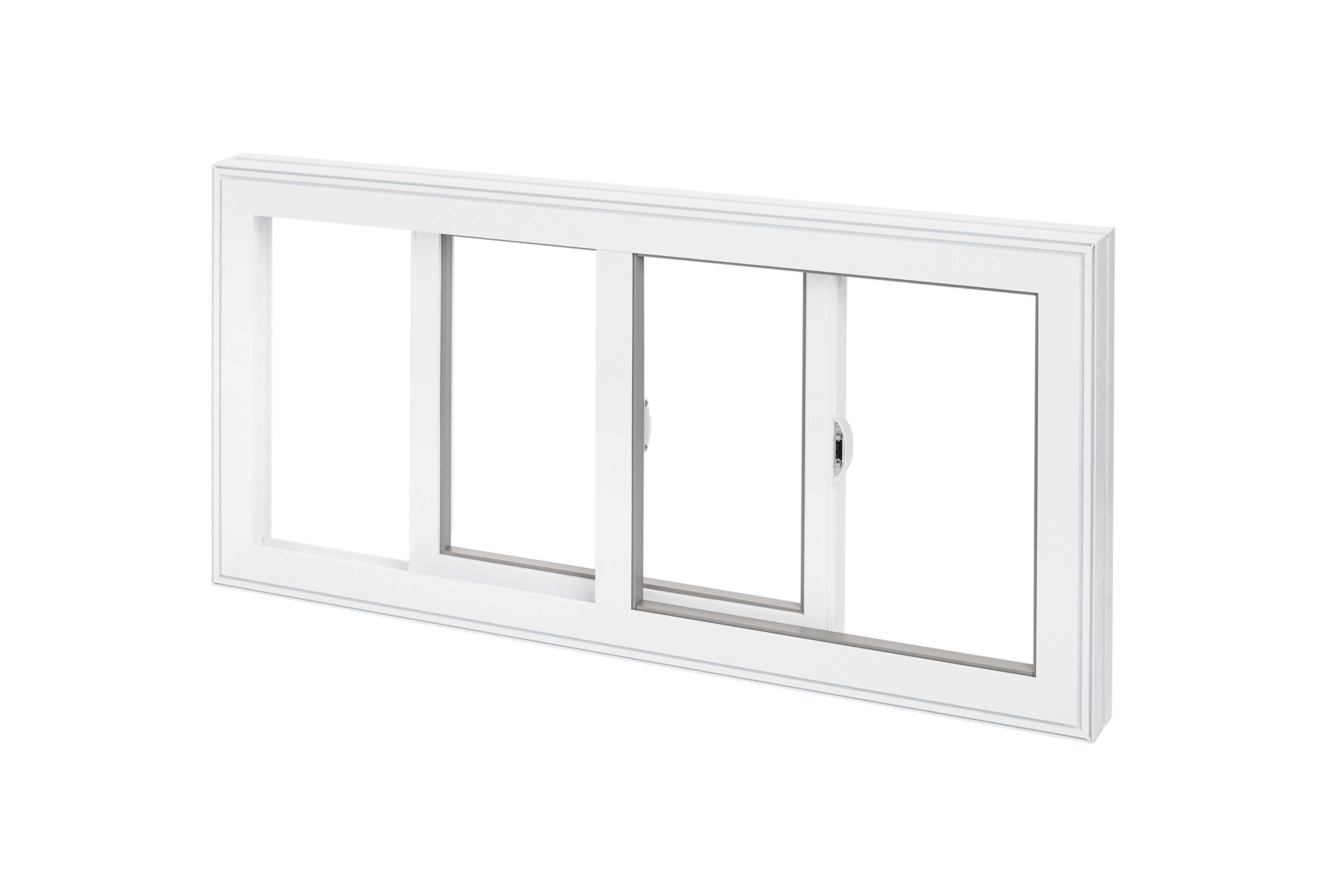

 Single Slider Window

Product

:

Windows

ENERGY STAR® Zone(s)

:

1 / 2

NRCan Number

:

NR7318-9032440-ES

Frame Material

:

Vinyl

Sash Material

:

Vinyl

Layers of Glazing

:

2

Low E Surface

:

3

Glazing Cavity Width (mm)

:

13

Glazing Cavity Fill

:

Argon

U-factor W/m2*K (Btu/h*ft2*F)

:

1.71 (0.3)

Solar Heat Gain Coefficient

:

0.54

Air Leakage (m3/h/m)

:

0.79

Effective Date (yy/mm/dd)

:

14/02/06

Energy Performance Certification Agency

:

QAI

Structural Certification Agency

:

QAI

Low E Type

:

Soft Coat

Emissivity

:

0.068

Spacer

:

TS-D

Tint

:

Clear

Energy Rating

:

32

Visual Transmittance

:

0.62





Single Slider Lift Out Windows



 Single Slider Lift Out Window

Product

:

Windows

ENERGY STAR® Zone(s)

:

1 / 2

NRCan Number

:

NR7318-9032440-ES

Frame Material

:

Vinyl

Sash Material

:

Vinyl

Layers of Glazing

:

2

Low E Surface

:

3

Glazing Cavity Width (mm)

:

13

Glazing Cavity Fill

:

Argon

U-factor W/m2*K (Btu/h*ft2*F)

:

1.70 (0.3)

Solar Heat Gain Coefficient

:

0.54

Air Leakage (m3/h/m)

:

1

Effective Date (yy/mm/dd)

:

14/02/06

Energy Performance Certification Agency

:

QAI

Structural Certification Agency

:

QAI

Low E Type

:

Soft Coat

Emissivity

:

0.068

Spacer

:

TS-D

Tint

:

Clear

Energy Rating

:

32

Visual Transmittance

:

0.62









2013 Top Choice Award Winner for  Best Window and Door Company in Calgary.
