Exterior Doors Optional Accessories
Exterior Doors Optional Accessories
Exterior Entry Doors are designed and built specifically to accept a multi point locking system.
The Security Automatic Door Lock, European technology in a North American lock.
By simply closing the door the upper and lower 3/4" (20mm) latches will instantly engage.
By turning the key from outside or the knob from inside it will engage the 1" central deadbolt and block the top and bottom latches to become a 3-deadbolt locking system.
| Description | Backset | Color | PU | Part Number |
|---|---|---|---|---|
| Door lock for 6' 8'' doors | 35mm | SS | 5 | 6-40526-01-R-8B |
| Door lock for 8' doors | 35mm | SS | 5 | 6-40526-02-R-8B |
| Door lock for 6' 8'' doors | 45mm | SS | 5 | 6-40526-03-R-8B |
| Door lock for 8' doors | 45mm | SS | 5 | 6-40526-04-R-8B |
| Door lock for 6' 8'' doors | 55mm | SS | 5 | 6-40526-05-R-8B |
| Door lock for 8' doors | 55mm | SS | 5 | 6-40526-06-R-8B |
| Door lock for 6' 8'' doors | 65mm | SS | 5 | 6-40526-07-R-8B |
| Door lock for 8' doors | 65mm | SS | 5 | 6-40526-08-R-8B |
PU = Packaging Unit

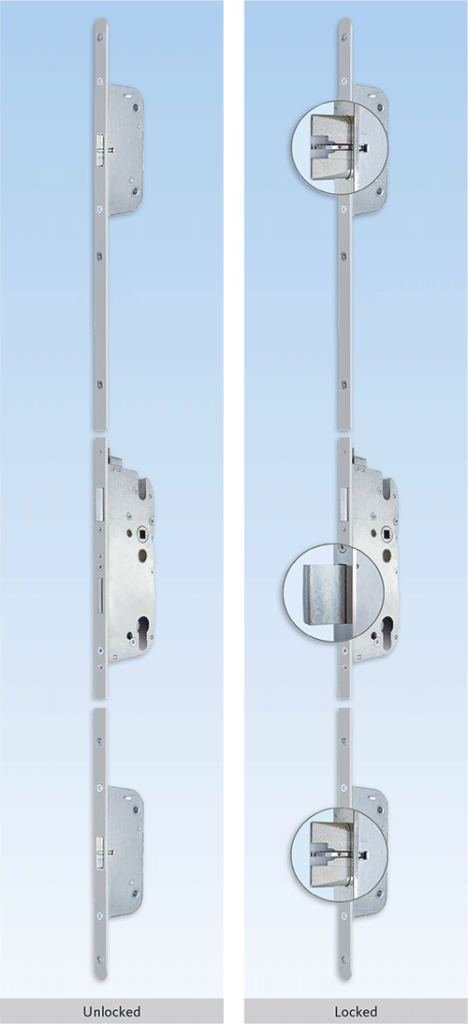

Simply Close the Door!
As soon as the door is pulled shut, the Automatic latchbolts instantly
throw 20mm and are secured to prevent them from being forced
back. By turning the key or the knob, the center deadbolt will engage
and lock the top and bottom latchbolts to become a 3-deadbolt
locking system.
Standard Features
- 3-point, one piece locking system for 6' 8'' and 8' doors
- Heavy duty mortise construction with reinforced lever return spring system
- Locking by PZ cylinder with 180° turn of key or thumb-turn
- Unlocking with 180° turn to retract the deadbolt and another 180° turn to retract the latches
- No lifting of handle to engage locking points
- Top and bottom Automatic latchbolt projection from 10 to 20mm: - Provides security - Protects the door
- 3/4'' (20mm) throw on deadbolt
- Non handed, latch easily reversible
- 8mm square spindle
- 92mm centres (spindle to cylinder)
- 16mm stainless steel faceplate with radius ends for easy installation and cleaner look
- Same hardware groove detail throughout our entire door lock program (jig, router base and bits available)
- Extensions with additional lock point are available for doors taller than 8'
- 360° turn with profile cylinders
European technology multi point locking system
