Awning Windows

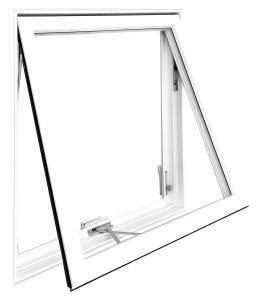

Awning windows are for the most part casement windows turned sideways with some minor differences. The drainage holes are adapted to awning specifications, and hardware is different from casement windows. Awning windows open outwards tilting 30 degrees out and make it a great choice for ventilation even during a light rain.
Awning windows like casement windows are one of the most energy efficient windows with an operable sash the market today.
Awning windows have the same simple, contemporary designs and easy installation as our Casement but are also very practical. This window with its Swing-Out feature and the industry’s most reliable and subtle operating mechanism protects from rain allowing ventilation at the same time. An Awning window above doors or other windows is a great choice that allows abundant light and additional air flow
PERFORMANCE
IG CONFIGURATION
FRAME
3 1/4”
PANEL
Contemporary
Features
- Opens outwards, pivots horizontally
- Superior airtightness (triple weatherstrip)
- Provides large, unobstructed view
- Double or triple glazed sealed unit
Certifications
- Conforms to AAMA/WDMA/CSA 101/I.S.2/A440-11 & A440S1-09.
- LC PG50 – 1200 x 800mm(47 x 32in)-AP
- DP: +/-2400Pa(+/-50psf)
- Water Test Pressure: 720Pa
- Canadian Air Infiltration/Exfiltration: A3
STRUCTURAL
| Standards | Air tightness | Water resistance [PA] | Wind-Load Resistance [PA] | Force entry | Rating Size |
|---|---|---|---|---|---|
| NAFS-AAMA/WDMA/CSA 101/I.S.2/A404-11 | A1 A2 A3 | 140 | | | | | | | | | 730 | 720 | | | | | | | | | 4800 | F10 F20 | CW-PG50-AP (62” X 48”) |
THERMAL
ENERGY STAR CERTIFICATION. Choose windows with excellent insulation and high energy efficiency to save on heating and make your
home more comfortable. Energy efficiency is expressed as U, R and ER. The different glazing options of the performance series allow
you to optimize the desired performance
U VALUE
HEAT LOSS, SELECT A LOW VALUE.
R VALUE
INSULATION AND CORRESPONDS TO 1/U SELECT A HIGH VALUE.
ENERGY EFFICIENCY RATIO HEAT LOSS + INSULATION + SOLAR GAIN,
Glazing
Glass Options
Our windows can accommodate double and triple glazed sealed units. All of our units come standard with premium spacer, argon gas fill, and double seal technology, making the sealed units last for years to come. Options include LoĒ coatings for improved solar control and added energy efficiency.
LoĒ-180 – Passive Solar Control Glass
Cardinal LoĒ-180 helps your home stay warm and cozy by blocking heat loss to the cold weather outside. Summer solar gain is about 10% less than ordinary double pane clear glass and the low U-Factor blocks heat gain from the hot weather outside. In short, it can save energy year round.The superior insulating capability of Cardinal LoĒ-180 is a key factor in the construction of comfortable windows for cold climates. The dramatic comfort improvement from windows with warm glass surfaces also means the relative humidity of the indoor air can be controlled and maintained properly. Proper humidity levels (not too much, not too little) will improve comfort and promote a healthier living environment.
LoĒ-272 – Glass for All Climates
Cardinal’s LoĒ² coated glass delivers year-round comfort in all types of weather. In summer, it rejects the sun’s heat and damaging UV rays. In winter, it reflects heat back into the room.Regardless of where your home is located, choosing windows that provide you with the highest level of comfort and energy savings year-round is extremely important. And choosing the right glass for your windows is the most important factor in that decision. Go beyond ordinary low-e glass. Let LoĒ² glass help you handle the weather – any weather.
LoĒ 366 – Ultimate Glass for All Climates
LoĒ³-366 delivers the ideal balance of solar control and high visibility. And it provides the highest levels of year-round comfort and energy savings. It’s also the one glass you can use to be compliant in every ENERGY STAR zone – in a double-pane window. When the temperature soars, ordinary window glass just can’t handle the heat. And tinted glass spoils the view. Cardinal LoĒ³-366, however, has been specially formulated to reject the sun’s heat without affecting the view. It lets more light in and keeps more heat out. So your home stays cool and comfortable.LoĒ³-366 provides exceptional fading protection as well. It blocks 95% of the sun’s damaging ultraviolet rays (a leading cause of fading), so it will help your furniture, carpets, curtains and wall coverings stay beautiful for years to come.
Privacy & Special Glass
Popular glass options include privacy frosted glass. Our standard frosted glass is Pin Head glass.
- Sandblast
- Rain Glass
- Delta Frost
- Glue Chip
- Sycamore
- Silvet
HARDWARE
Premium Locking Mechanisms
All of our casement windows come complete with premium hardware with multi point locks, and a great looking folding crank handle for a sophisticated look.
Standard Multipoint
The multipoint lock is our standard and the most cost-effective option.
Lock and Encore folding handle are available in white and black.
Assa Abloy
Impact rated heavy duty multipoint lock system for casement and awning windows exceeds testing norms by 300% for durability and extreme weather. Available with an optional corner drive.
Corner Drive
Enhance large casement and awning windows with the optional corner drive for maximum efficiency and air tight seal
NOVA II Lock & NOVA Slim Folding Handle by Assa Abloy Nova II
casement and awning lock combined with Nova Slim folding handle offer a classic, elegant and timeless solution to your window hardware finish. Available in white, black and brushed nickel.
VESTA Lock & Folding Handle by Assa Abloy
Combining contemporary aesthetics and styling with optimized security and ease of operation, the VESTA offers an extra low profile eliminating interference with blinds and window treatments. Available in white, black and brushed nickel.
- The standards in automatic sash lock solutions for hung and sliding windows.
- Hurricane rated in impact certified applications.
- Superior performance compared to cam locks.
Autolock Hardware
Regular Cover
Slim Line Cover
COLOUR
Exterior and Interior Paint or Lamination
All of our windows can be custom painted to any color of your choice. We also have a laminated finish available in textured matte black and textured matte commercial brown, the finish of the windows looks quite sophisticated and is more durable and scratch resistant compared to spray painted windows. Another advantage of using laminated windows is the lead time. The typical lead time for white and laminated windows is similar at 4 weeks, while painted windows take 6 weeks for delivery. Below are some of the most popular exterior window colors:
INTERIOR
Jamb Extensions and Casing
Our windows can be complimented with paint grade primed wood jamb extension ranging in width from 1″ to 5″ as well as vinyl package consisting of vinyl jamb extensions and vinyl colonial casings with matching 45degree rosettes.
EXTERIOR
Brick Mould Options
Exterior can be finished with brick moulds ranging from 3/4″ to 2″ in width.
